Cable Trays & Accessories

Cable Trays & Accessories

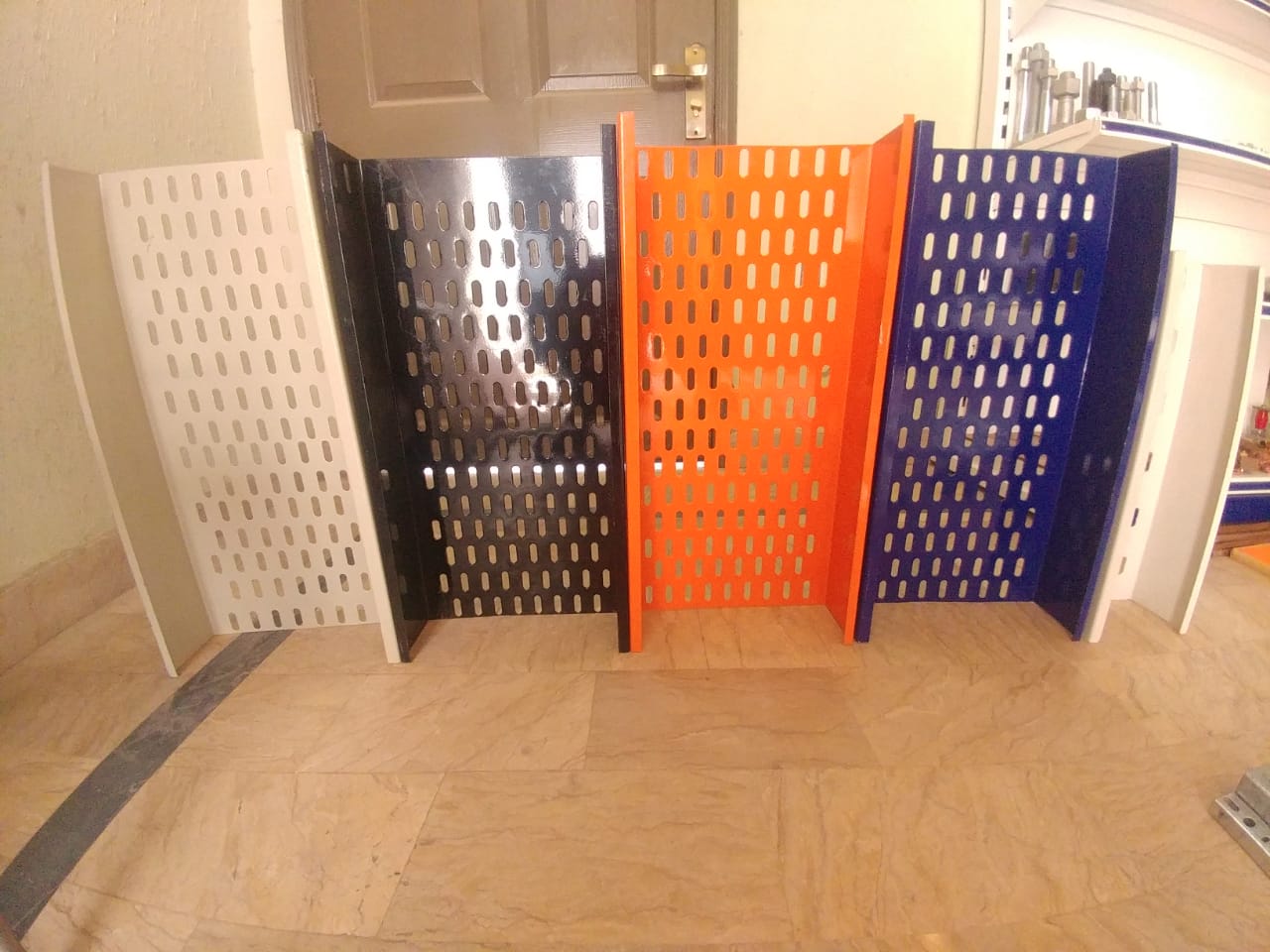

Perforated Cable Trays

  1. 1. Perforated Cable Tray Made of Sheets With Perforation on the based or side
  2. 2. Suitable For Power Cables/Instrument and Data Cables.
  3. 3. Length: 1 Mtr to 6 Mtr (6000MM)
  4. 4. Width : 50MM to 600MM (2 Inch To 24 Inch)
  5. 5. Thickness 20SWG to 12 SWG ( 1MM to 2.5MM)
  6. 6. Material GI, MS Hot Dip Galvanized, Powder Paint & SS 304 and 316
  7. 7. Also available as per client requirements

Ladder Cable Trays

  1. 1. Low cost, significant cost savings compared to standard traditional tray products.
  2. 2. Light in weight, wide range of sizes From 100MM To 1200MM Width
  3. 3. Flexible, easy and fast installation. The design allows cable exit or entry at any point.
  4. 4. Cables can be secured to clamps or ties
  5. 5. Easy for line check and cleaning, easy maintained
  6. 6. All sharp ends are cut off to protect cables. Weight loading capacity is 27% stronger than traditional cable trays and cable ladders

Cable Duct - Cable Trunking

  1. 1. Same with cable tray but with a solid bottom
  2. 2. More suitable for smaller cables like data cable and instrument cables.
  3. 3. width of cable duct from 50MM to 600MM
  4. 4. Height of cable duct from 50MM to 200MM
  5. 5. Material GI Sheet, MS HDG, Powder Paint & Fire Retardant Paint

Unistrut Channel

  1. 1. Unistrut channel made from the best quality MS/GI sheet.
  2. 2. Length as per client requirements
  3. 3. Standard lengths are 10ft and 20 ft
  4. 4. Slotted and without slotted
  5. 5. Dimensions are 41x41mm 41x25mm
  6. 6. Thickness 1.2mm to 2.5mm
  7. 7. Finishing Hot-dip Galvanized, Powder paint, GI
  8. 8. Complete fitting Range with all accessories
  9. 9. Capacity 2000 meter per day supply capacity

Cable Tray Supporting System

  1. 1. Perforated Angle
  2. 2. Perforated c channel
  3. 3. Threading Rod
  4. 4. Unistrut cantilever
  5. 5. Wall-mounted supports
  6. 6. Roof hanging supports
  7. 7. Floor mounted support system
